PB-460/2
Electric stretcher support PB-460/2
The new PB-460/2 stretcher support offers performance and sophistication at the highest level, a product created to meet increased demand in the transport sector collective health.
Equipped with two actuators allows to perform all electrical appliances such as positive and negative Trendelemburg, up and down horizontally, automatic loading position, movements, etc, by remote control.
Include the 35 cm ramp.
The stretcher support height in its lowest position is 23,9 cm.

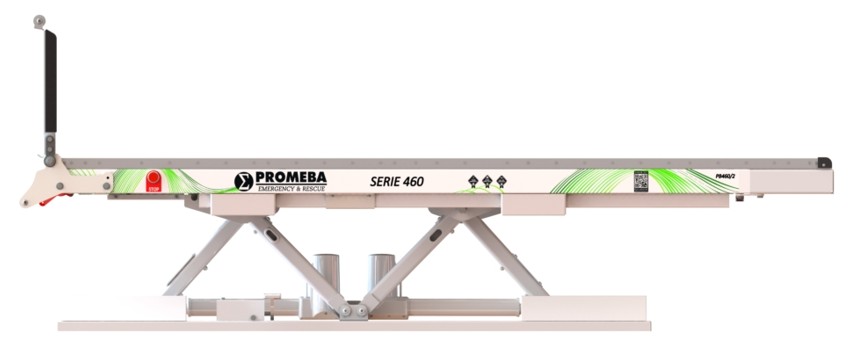

Full electric motion stretcher support system
Remote control with 1.5 meter cable for easy use in the ambulance.

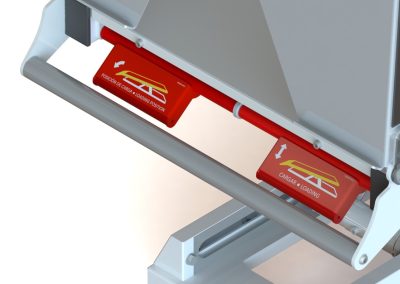

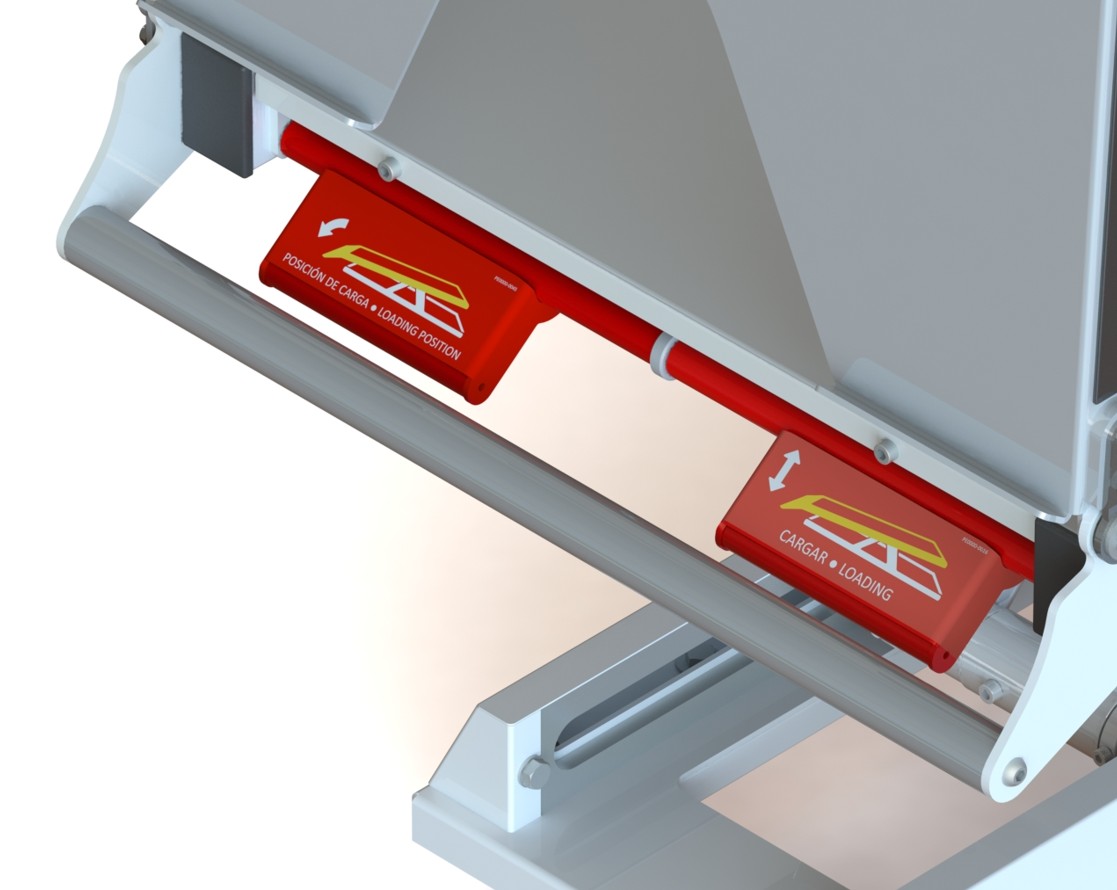

Front controls easily accessible for loading and unloading operation.
160 mm electrically adjustable height.

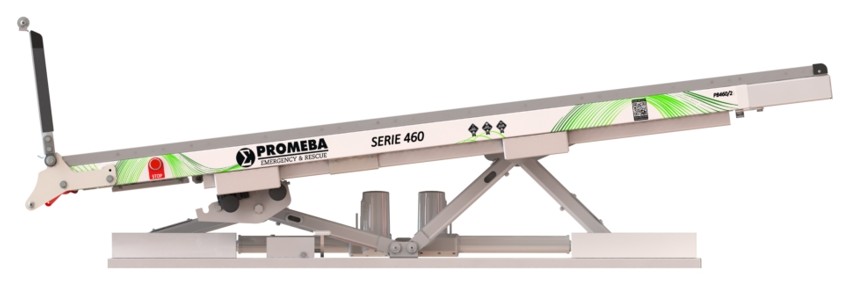

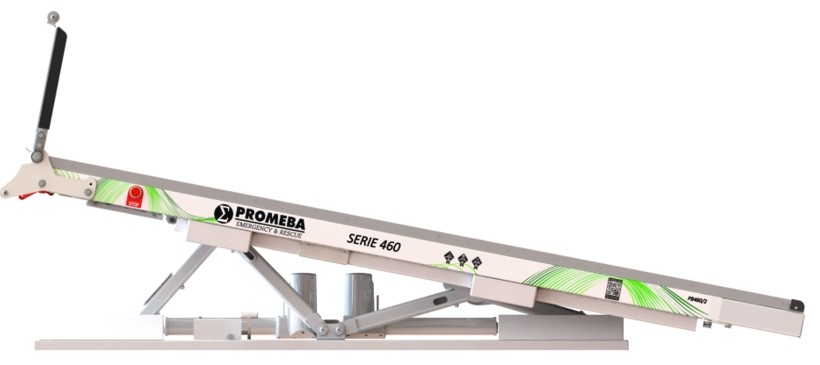

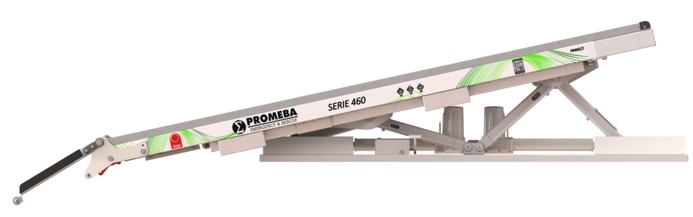

Trendelemburg positive (+10%) and negative (-15%) in electric mode.

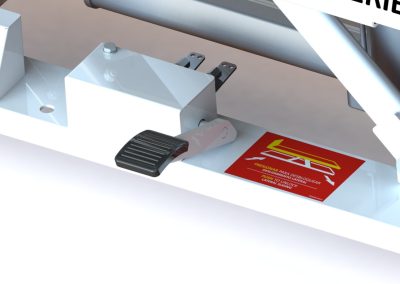

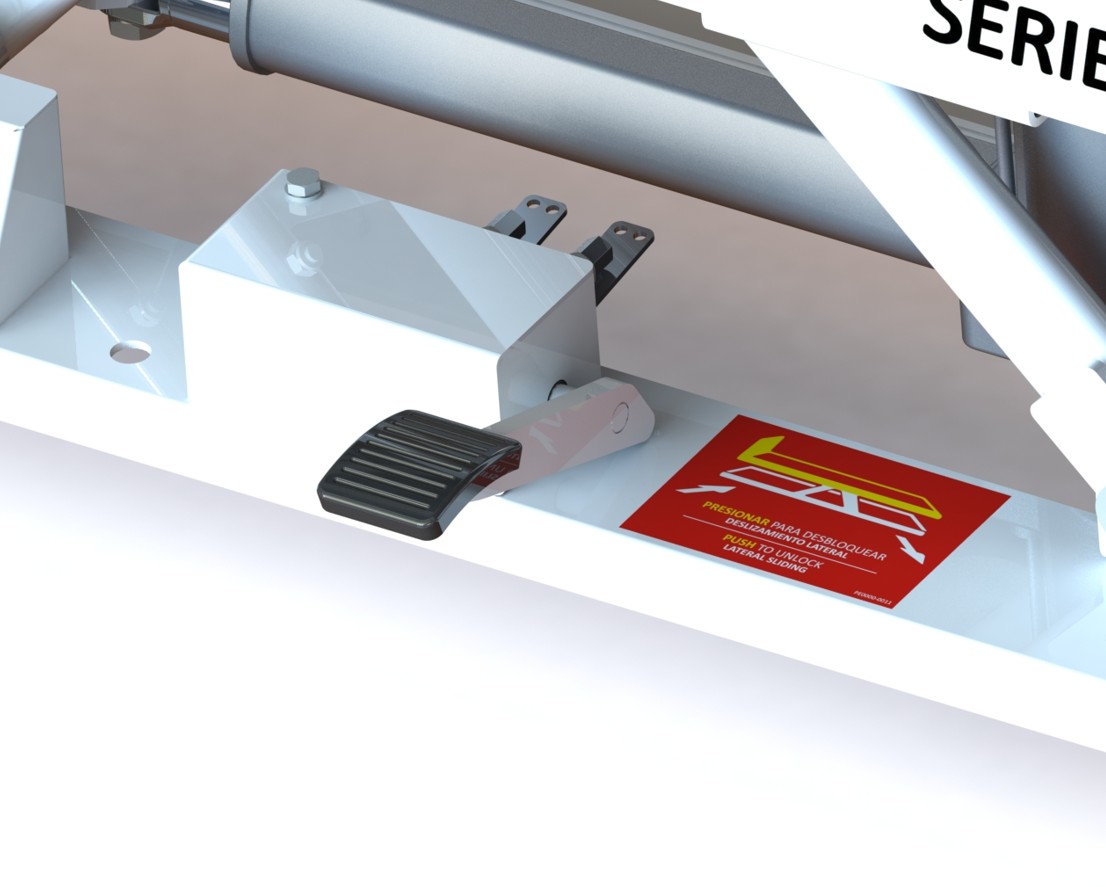

Side scrolling through pedal located on the base of the stretcher support for free your hands.
Stretcher support height in its lowest position: 23,9 cm.
TECHNICAL DATA
Large | 2005 mm
Width | 633 mm
Height min.-max. | 239-403 mm
Weight | 82 Kg
Load capacity | 250 Kg
Power | 12v c.c.
Trendelemburg | -15º / +10 º
Height of charge | ± 40 mm
Lateral movement | 266 mm
