PC-951

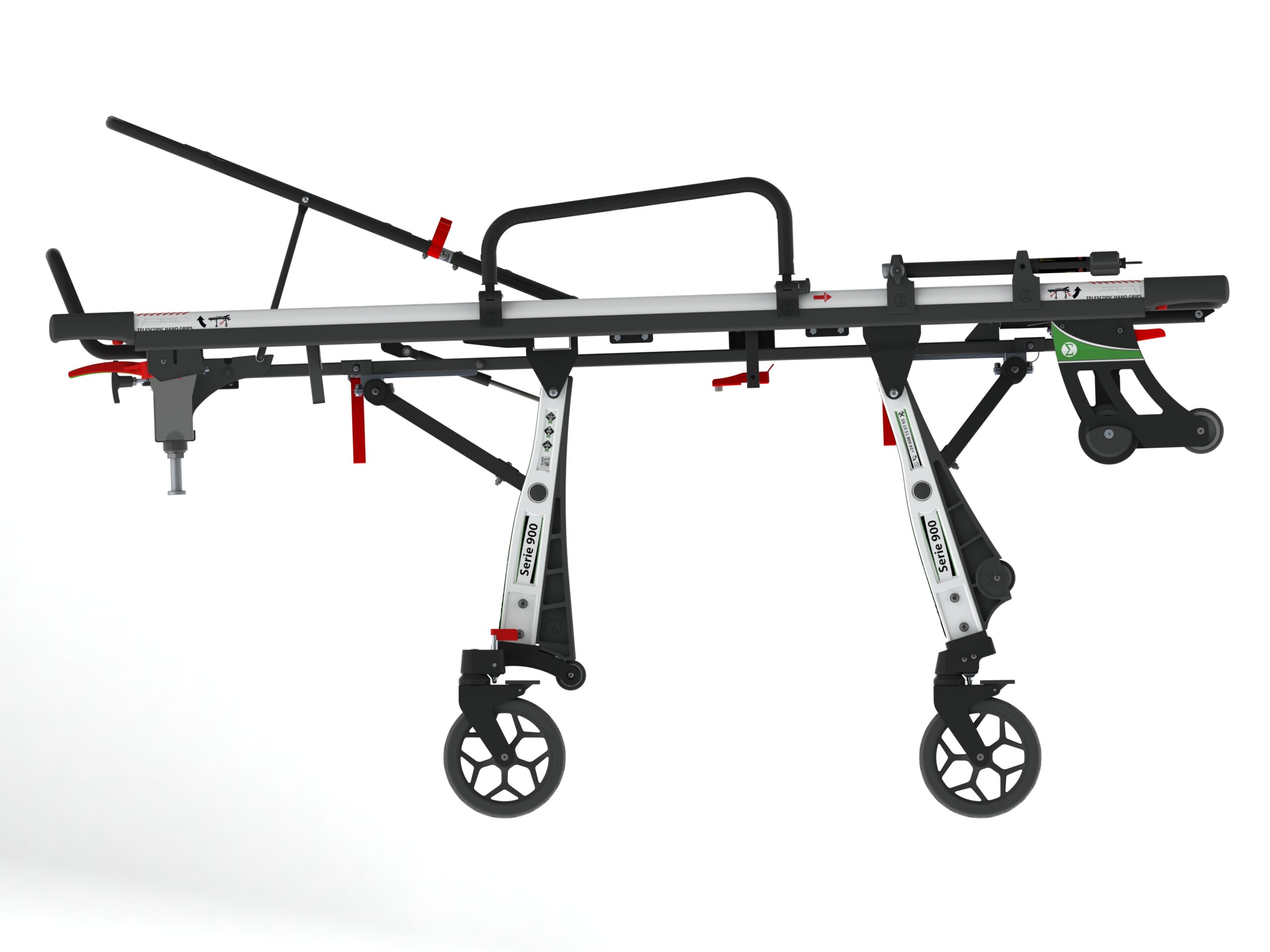

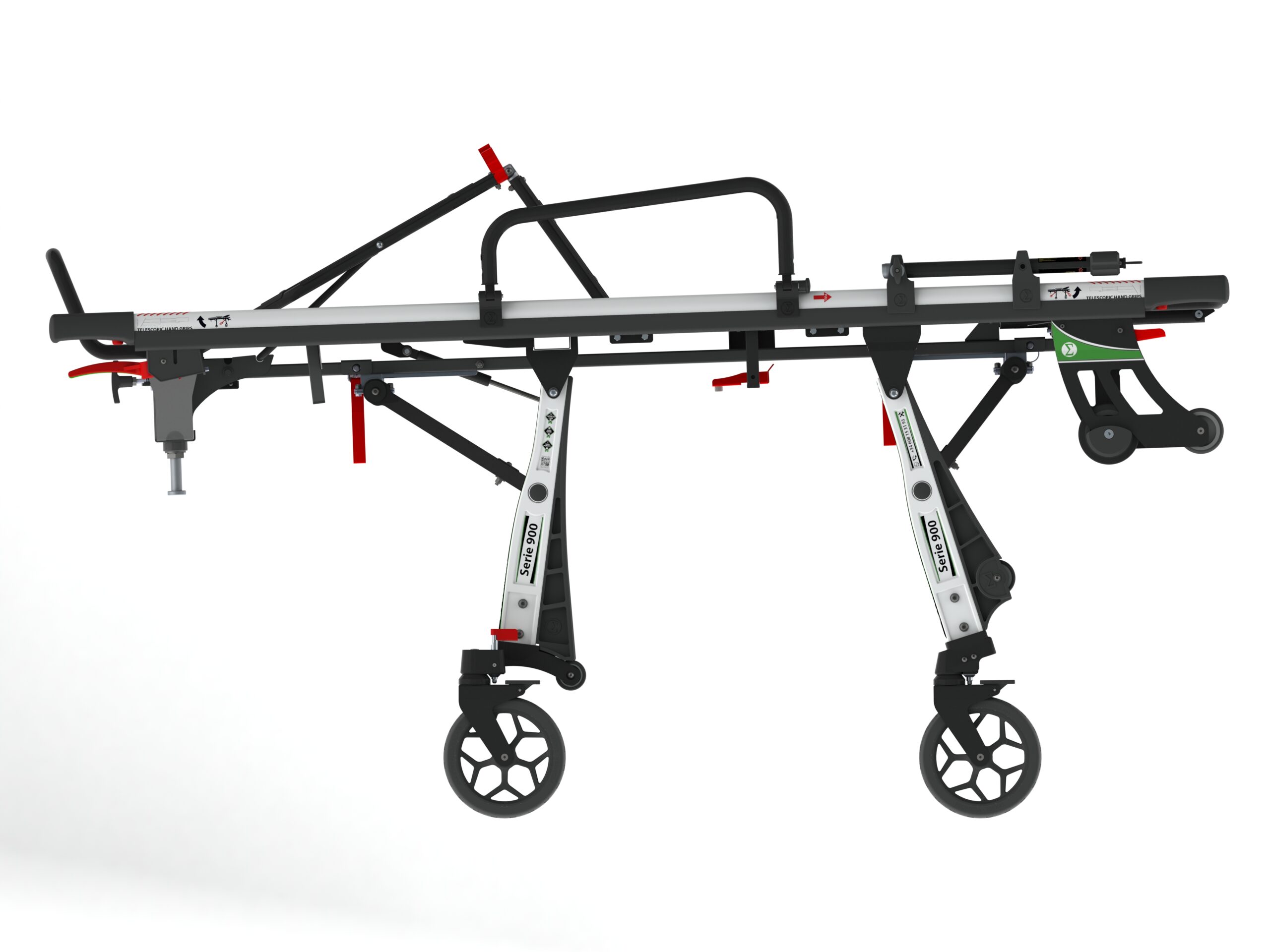

Ambulance Stretcher PC-951 Fowler

The PC-951 stretcher offers a great balance between performance and benefits thanks to its high-strengh aluminium structure. Its components are extensively tested under demanding use conditions that fact give high reliability to it.

Available with 4 rotatory and locking wheels. It has folding rails to allow the transfer of the patient and with the possibility of incorporating the bariatric kit.
The stretcher is very light for better maneuverability and has 12 positions to facilitate patient loading.

The load attack is 56 cm.

The upper internal part made in aluminium. It allows the Fowler position.

PERFORMANCE range.

Ergo Load System: The PC-951 is designed to maneuver and control the stretcher from the footrest, facilitating a
proper position for the healthcare technician, who must apply less force.

Quick Lock System: The PC-951 has a lever that allows you to lock the front wheels without moving or bending over.

The PC-951 stretcher is designed to facilitate a proper position for the healthcare technician and avoid injuries.










Performance range with Quick lock system y Ergo load incluided.

Upper internal part made in aluminium.

Fowler position.

New belt anchoring system that allows be change them easily for its cleaning.

Reinforced footrest that allows you to drive and load the stretcher with your hands on it to improve the ergonomics of the medical technician.

Folding handrails that facilitate the transfer of the patient from the stretcher to the bed. They are specially designed to facilitate the transfer and minimize the space between the stretcher and the bed.

Handle grips with reinforced material that ensures they do not break despite being used to open hospital doors.

Rubber weatherstrip to avoid scratches and keep the stretcher looking new for longer.

4 attack wheels to improve load and reduce wear.

Aluminum stamping feet manufactured with techniques used in the automotive industry that guarantee great resistance with a very low weight.

Easy-to-assemble bariatric kit, suitable for any 900 Series stretcher.

Reclining backrest by manual operation.

Telescopic levers for better maneuverability.

Foldable IV pole that allows it to be positioned anywhere on the stretcher.

Multiple levels of loading to carry out the transfer or facilitate the incorporation of the patient.

TECHNICAL DATA

Large | 1940 mm

Width | 560 mm

Height  | 940 mm

Loading Height | 560 mm

Stretcher weight | 43,5 Kg

Anchor point | 1525 ± 5 mm

Load capacity | 250 Kg

CATALOG SERIE 900

Cataleg PC-900 v7_
