PB4100-00000M

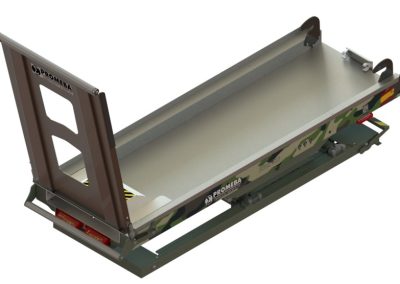

Military PB-410/0 stretcher supportThe PB-410/0M military stretcher support is a Promeba stretcher support specially designed for high military vehicles thanks to its large 900 mm long ramp.
The front controls enable all movements, such as positive and negative Trendelenburg, loading and unloading, and lateral movement, to be carried out very comfortably from both inside and outside the ambulance.
The system includes the Promeba stretcher anchoring system.
It has been designed to accommodate a scoop stretcher.
Stretcher support system with manual Trendelenburg movement.
Longitudinal movement for quick and easy loading/unloading of the stretcher.
900mm long stainless steel ramp to facilitate the loading process.
Upper tray with accommodation and fixation for scoop stretcher.
Positive (+10%) and negative (-10%) Trendelenburg in manual mode.
Easy-access front controls for loading and unloading operations, with a new, more ergonomic and centered design.
Side control for manual Trendelenburg movement
With protection at the bottom of the front controls to prevent damage to the cables.
With protective covers on the lateral displacement system.
Possibility of incorporating the winch system to load the stretcher with minor effort.
STRETCHER SUPPORT TRAINING
TECHNICAL DATA
Large | 1919 mm
Width | 631 mm
Height | 294 mm
Weight | 79 Kg
Max. Load | 300 Kg
Trendelemburg | -10º / +10 º
Lateral movement | 300 mm
Download the product documentation as PDF
