PB4100M-PA4901

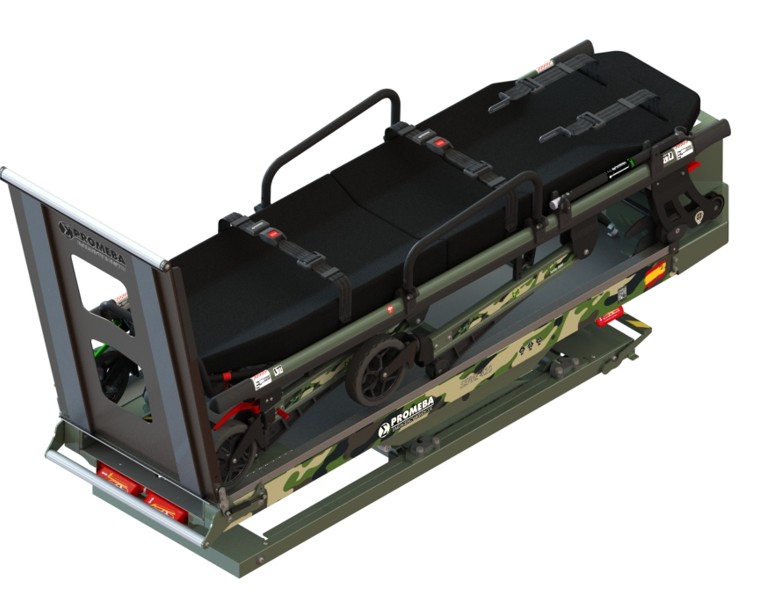

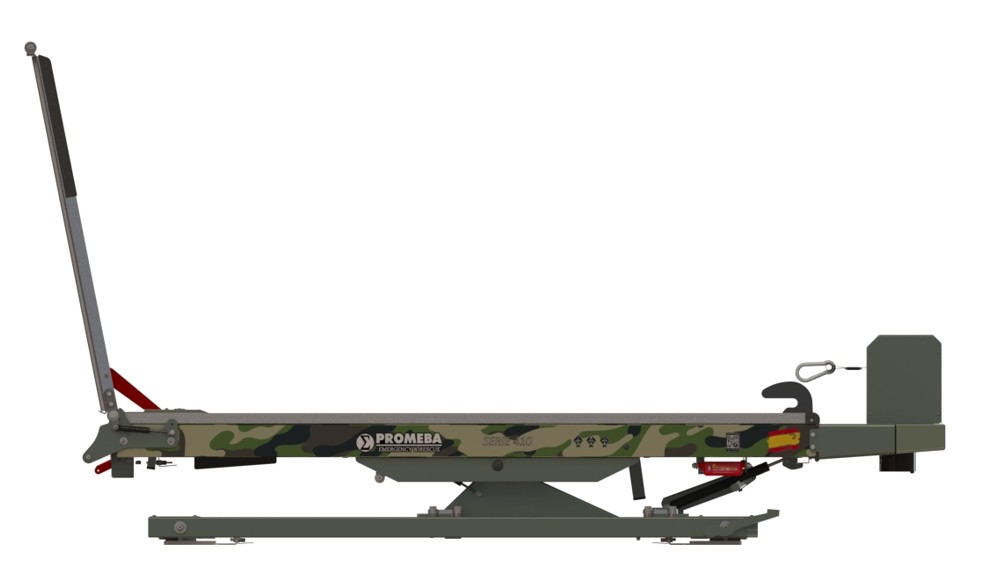

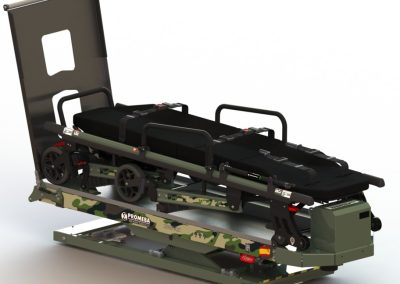

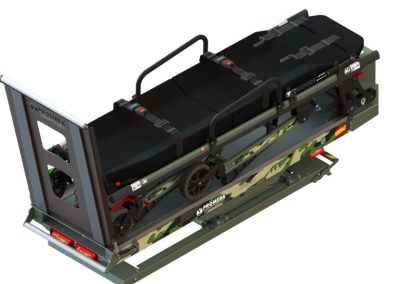

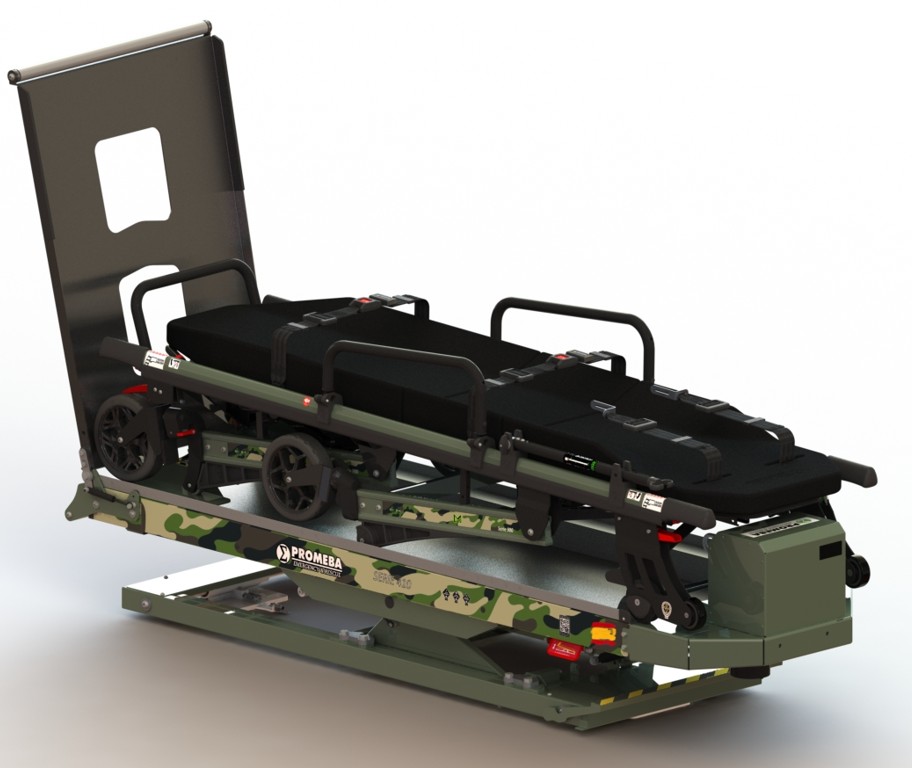

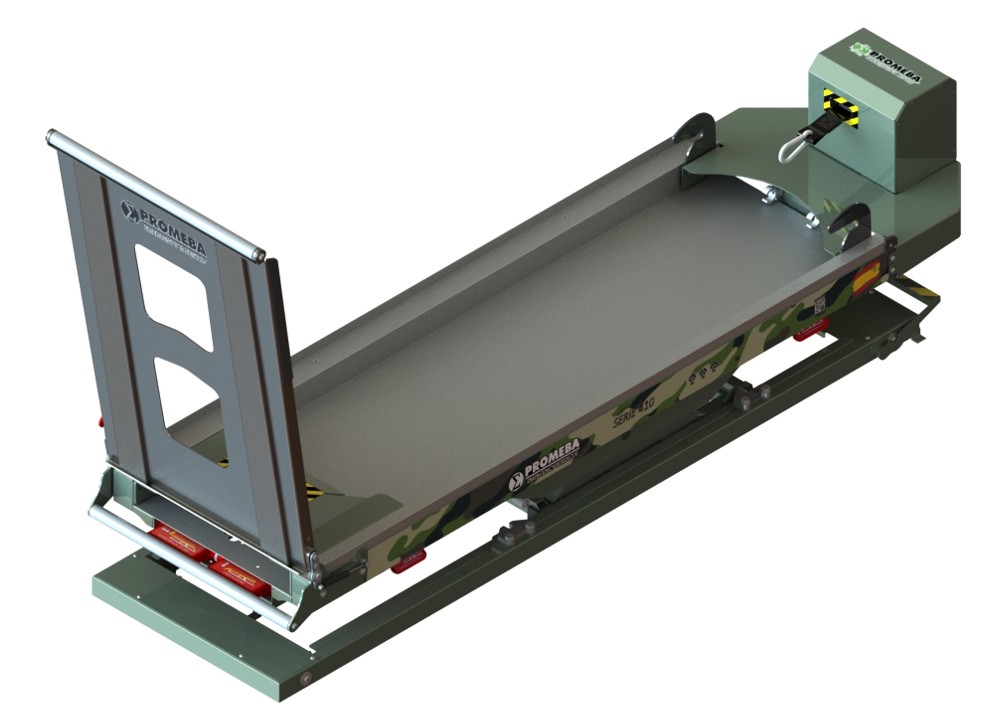

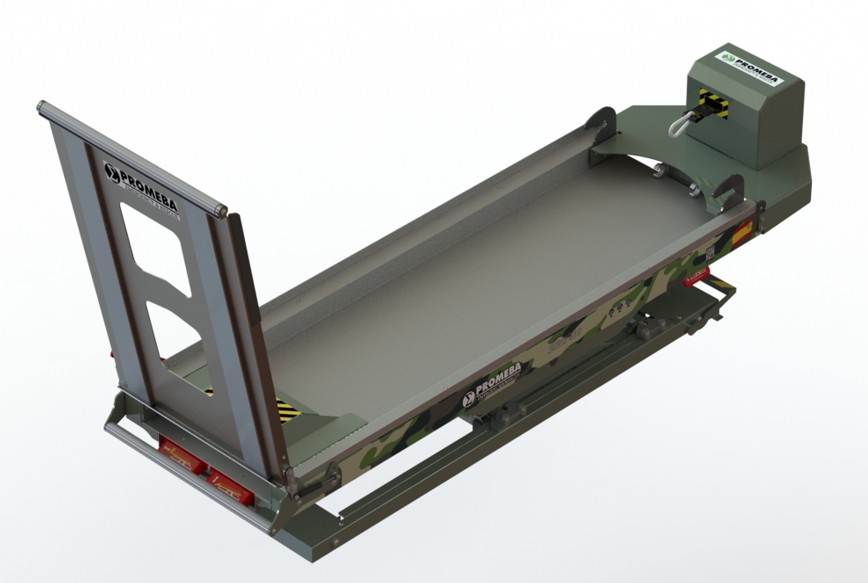

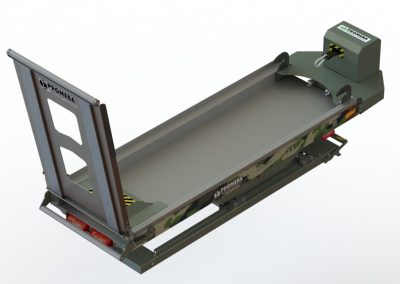

Military stretcher with winchThe PB4100M-PA4901 military stretcher is a Promeba stretcher support specially designed for high-clearance military vehicles. The large 900 mm long ramp and the winch that connects to the Promeba military stretcher (PC-913/7M) facilitate the loading and unloading of patients from military vehicles, even those at elevated heights, with minimal effort.
The front controls allow all movements, such as positive and negative Trendelenburg, loading and unloading and lateral displacement, to be carried out very comfortably from both inside and outside the ambulance.
The system includes the Promeba stretcher anchoring system.
It has space for a scoop stretcher.
Stretcher support system with manual Trendelenburg movement.
Longitudinal movement for quick and easy loading/unloading of the stretcher.

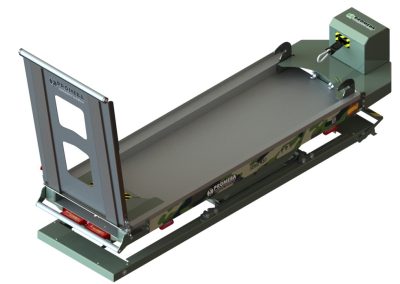

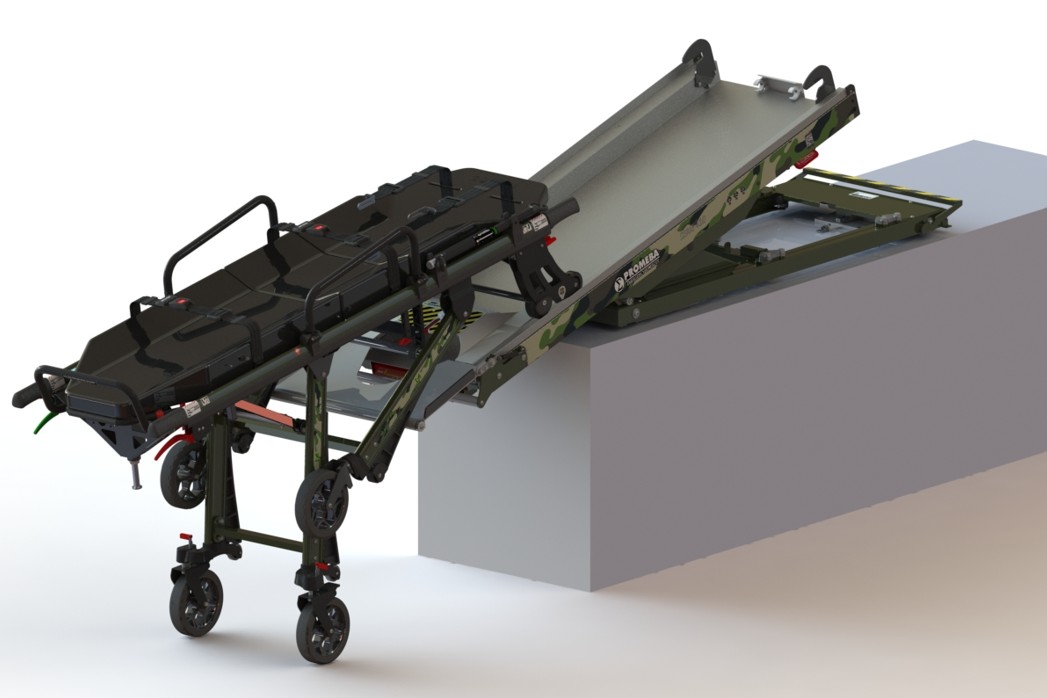

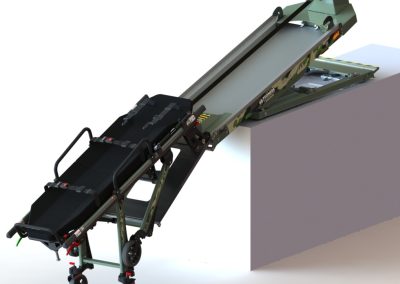

900mm long stainless steel ramp to facilitate the loading process.
Upper tray with accommodation and fixation for scoop stretcher.
Positive (+10%) and negative (-10%) Trendelenburg in manual mode.
Easy-access front controls for loading and unloading operations, with a new, more ergonomic and centered design.

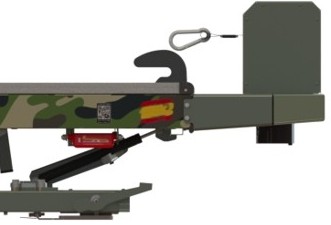

Side control for manual Trendelenburg movement
With protection at the bottom of the front controls to prevent damage to the cables.
With protective covers on the lateral displacement system.

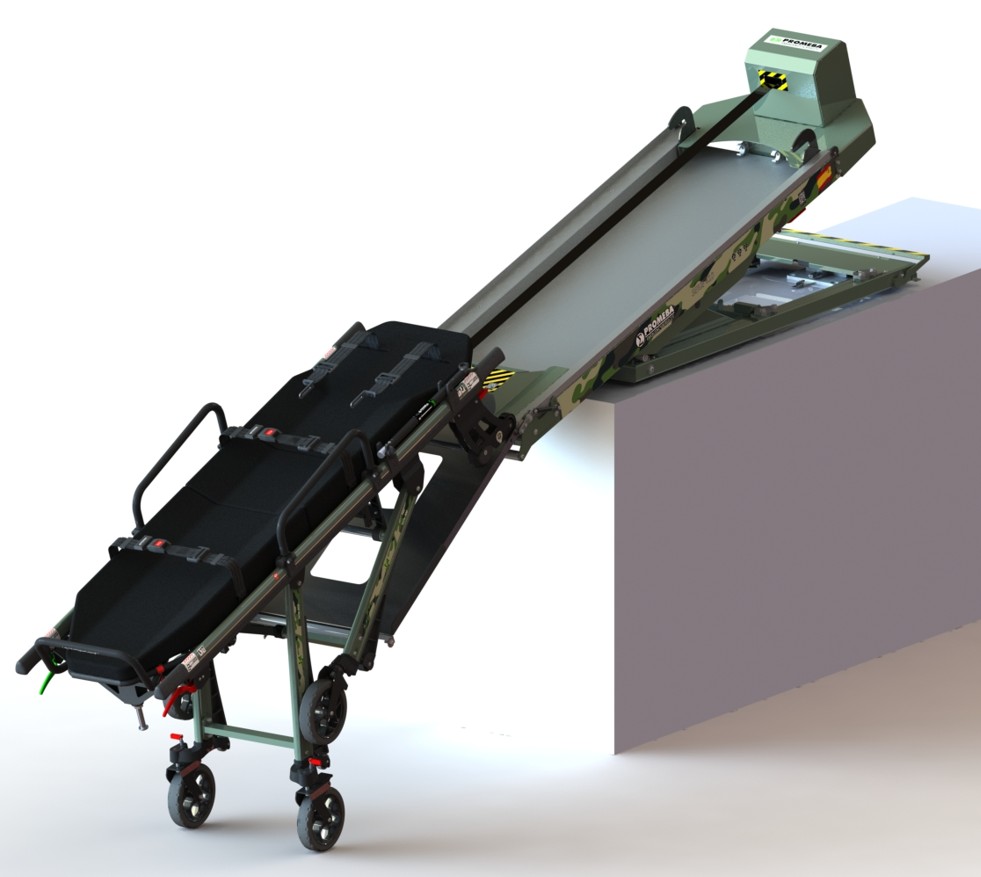

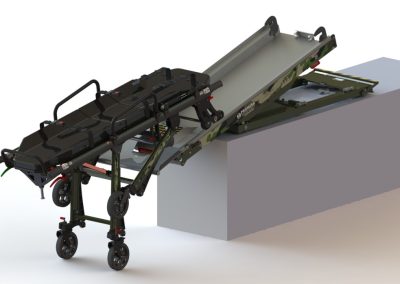

Winch system included to load the stretcher with minimal effort.
STRETCHER SUPPORT TRAINING

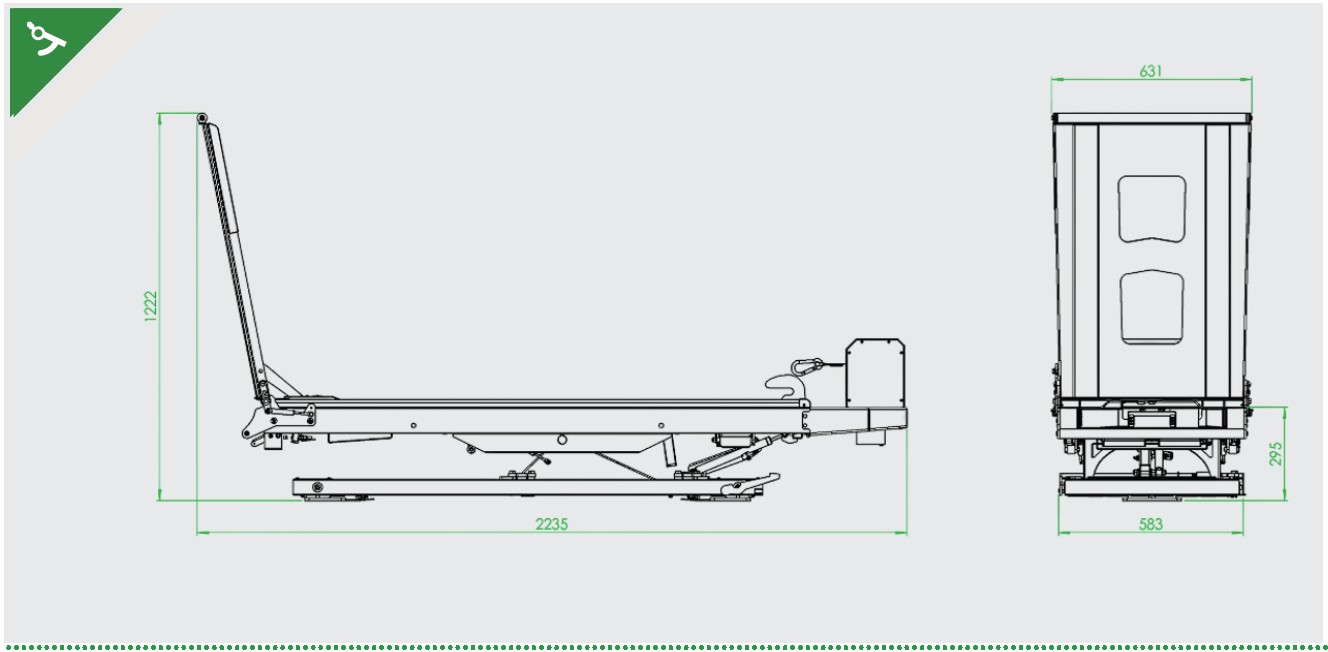

TECHNICAL DATA
Large | 2235 mm
Width | 630 mm
Height | 294 mm
Weight | 90 Kg
Max. Load | 300 Kg
Trendelemburg | -10º / +10 º
Lateral movement | 300 mm
